Description:

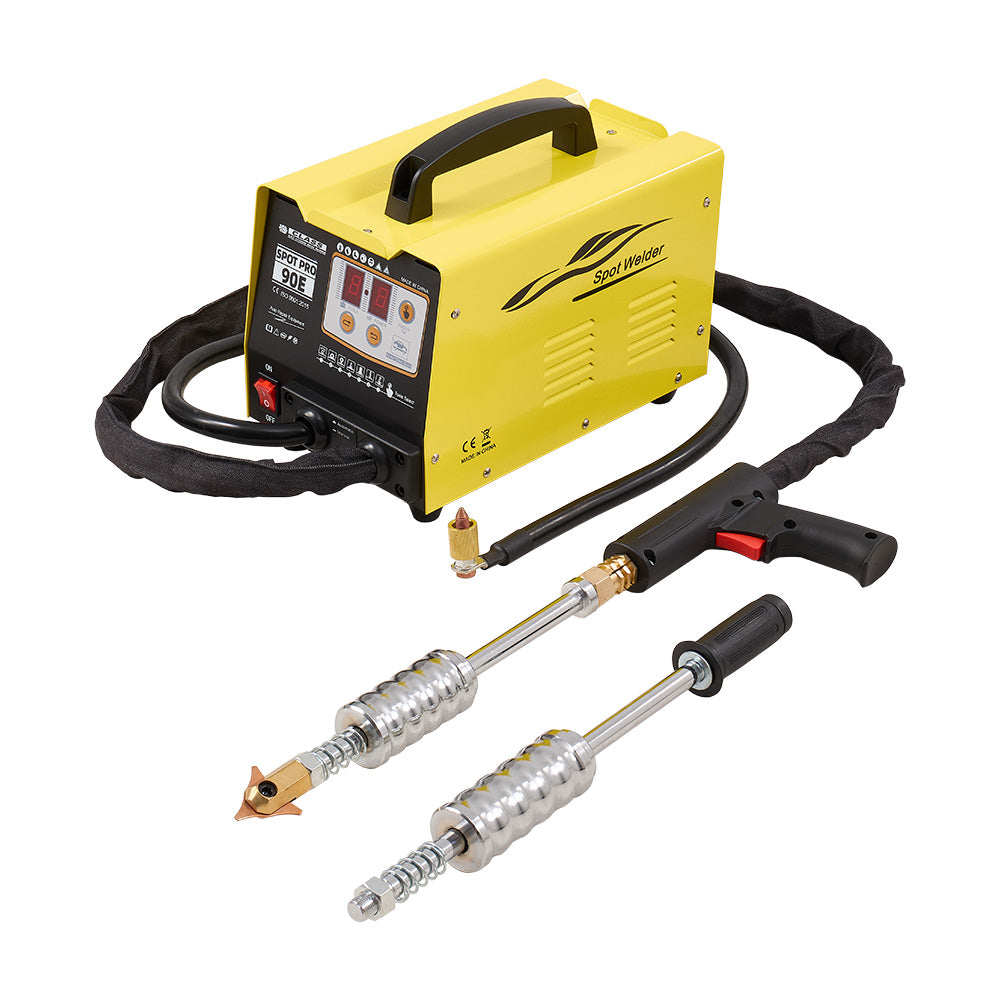

This professional spot welder is designed for auto body dent repair, especially effective on thin metal parts like hoods, doors, roofs, and fenders. Featuring an intuitive control panel with 7 welding modes and 11 adjustable power levels for versatile repairs. The bright LED display clearly shows selected modes and real-time power output. Built-in overheat protection and efficient cooling ensure stable performance. Advanced welding technology delivers precise micro-spots without damaging anti-corrosion coatings—making repairs safer and more efficient!
Features:
- Comes with two interchangeable welding heads for different repair applications.
- Includes all essential accessories for immediate operation.
- Top-mounted handle enables easy transportation.
- Equipped with anti-skid feet for stable placement during use.
Specifications:
Model: 90E
Dimensions: 31cm W x 20.5cm D x 26.7cm H
Electrode Holder Wire Length: 1.7m
Earth Clamp Wire Length: 1.4m
Power Cord Length: 1.5m
Input Voltage: AC 110V/230V/380V
Output Voltage: AC 1-7V
Input Power: 3KW
Instantaneous Maximum Output Current: 3800A
Operating Current: 20A
Working Method: Automatic/Manual
Suitable Welding Thickness: 0.4-1.2mm
Number of Welding Modes: 7
Welding Modes: Triangle Sheet Welding, Gasket Welding, OT Gasket Welding, Waveline Spot Welding, Hot Pressing, Carbon Rod Heating, Stud Welding
Power Source: Plug-in (UK Adaptor)
Package Contents:
1 x Host
1 x Pulling Hammer
1 x Pulling Gun
10 x Wavy Wire
1 x Meson Head
1 x Carbon Rod Head
1 x Spot Welding Head
2 x Carbon Rods
1 x Wrench
1 x Pull Hook
1 x Six-jawed Hook
10 x Triangle Tabs
10 x Long Shims (OT)
20 x Round Spacers
1 x Suction Cup
Package Specifications:
Package Dimensions(WxDxH): 47 x 32 x 31cm
Gross Weight: 29.5kg
Notes:
1. Read the user manual carefully before use. Only use genuine parts, and ensure operators are trained and familiar with the equipment.
2. Ensure proper grounding to prevent static damage. Use anti-static covers when transporting or storing the machine.
3. Do not operate with wet hands or damp clothing. Never switch off the power during operation. Wear insulated, thick-soled shoes and keep cables away from your body to prevent electrical shock. Grounding must be direct—no indirect methods allowed.
4. After welding, check for heat, sparks, or hot fragments. Do not weld inside enclosed containers. Keep flammable and explosive materials well away.
5. Welding produces harmful fumes. Ensure good ventilation and always wear a protective mask and eye protection.
6. Never touch hot workpieces with bare hands—wait until they cool down before handling.
7. The machine may emit electromagnetic fields that could interfere with pacemakers. People with pacemakers should stay clear.
8. Continuous use may cause overheating. Allow the machine to rest periodically during long operations.
9. Ensure all flammable and explosive substances are kept at a safe distance from the welding area.
10. Be careful when moving the equipment—avoid crushing or bruising injuries.
11. Only qualified personnel should perform welding at height, and only with appropriate safety measures in place.
12. Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
13. Actual product colours may vary due to monitor settings & lighting.
