Description

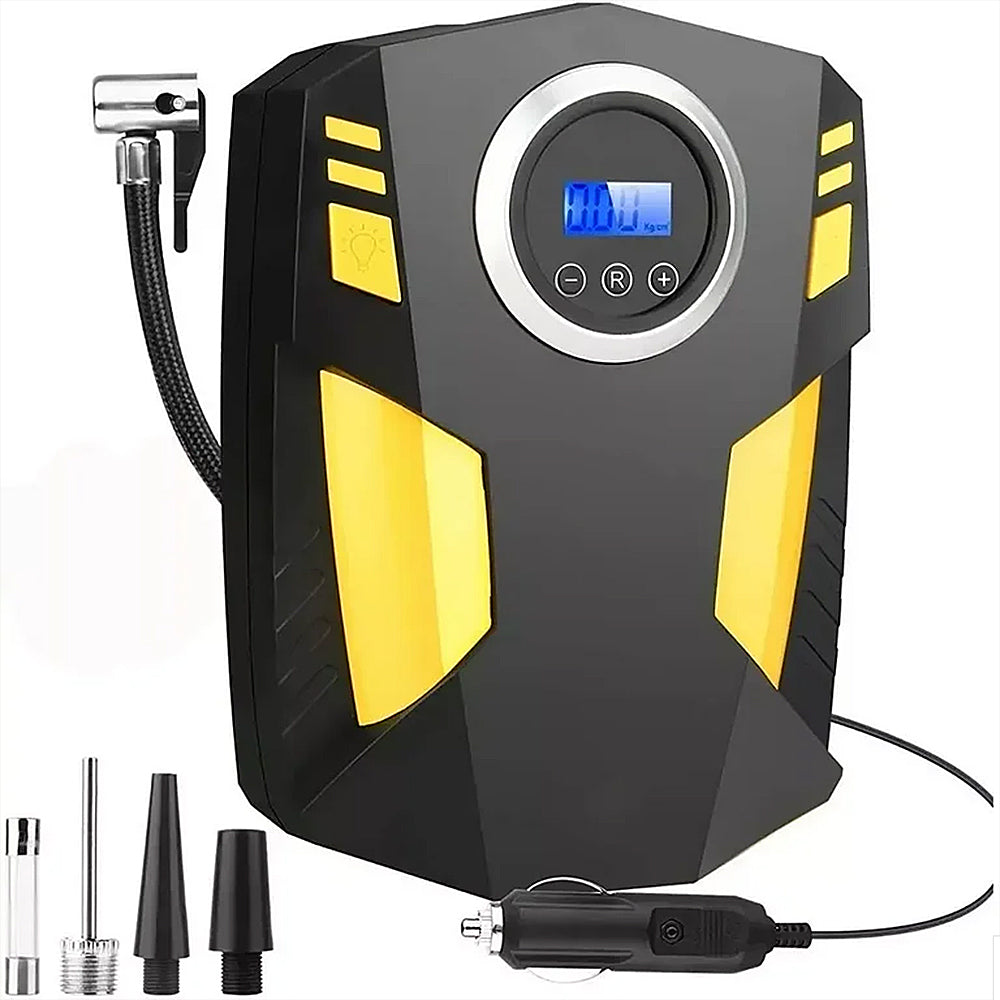

Inflate your tyres in a flash with this powerful and efficient car tyre inflator! Its impressive 25L/min air flow mean you will be back on the road in no time. The clear digital display provides real-time pressure readings, while the high-precision sensor ensures accurate measurements, preventing over or under-inflation. Choose from four preset modes to easily set your desired tyre pressure, and the inflator will automatically stop once reached. Powered by a robust and low-noise pure copper motor, it is safe, fast, strong, and built to last. It is not only suitable for 12V car tyres, but also for bikes, balls, inflatables and more. Plus, its compact and lightweight design makes it easy to carry and store, perfect for outdoor travel.
Features
- Easy Snap Connector: The snap-on interface ensures a quick and secure connection to your tyres.
- Simple Operation: The user-friendly interface makes operation incredibly straightforward.
- Built-in LED Lighting: An integrated LED light provides helpful illumination during nighttime or low-light use.
- Versatile Unit Display: Easily switch between PSI, BAR, and KPA for accurate pressure readings.
- On-the-Go Power: The convenient 12V cigarette lighter plug offers power for inflating anywhere.
- Integrated Storage: The design conceals the power cord and air hose, creating a tidy look.
Specifications
Dimensions: 14cm W x 6cm D x 21.5cm H
Material: ABS
Working Voltage: 12V
Rated Power: 120W
Maximum Current: 10A
Max Air Pressure: 150PSI
Power Cord Length: 300CM
Hose Length: 60CM
Flow Rate: 25L/Min
Units: PSI, BAR, and KPA
Continuous Working Time: 10 Mins
Digital Display: Yes
Package Content
1 x Tyre Inflator
1 x User Manual
1 x Nozzle Adaptor Kit
Package Specifications
Package Dimensions (WxDxH): 21.5 x 15.5 x 8cm
Gross Weight: 0.84kg
Instructions for Use:
1.Insert the nozzle on the rubber hose directly onto the tyre’s valve. When you hear air escaping from the tyre, it means air is flowing. Continue to tighten the nozzle until air no longer escapes.
2.Plug into the DC12V car cigarette lighter socket.
3.While inflating, the gauge needle will rise with the tyre’s saturation. When the needle reaches the correct tyre pressure (typically 223kPa = 35PSI for passenger car tyres), remove the plug and nozzle to complete the process.
4.Please use the provided professional ball needle and plastic nozzle to connect to the air nozzle for inflating balls and other equipment requiring air.
Notes
1.Do not use this inflator for large or overweight vehicle tyres, such as those on trucks, lorries, or container vans.
2.When in use, please start the car’s engine to boost the power; this prevents draining the car’s battery.
3.This unit is designed for direct current (DC12V) power only. Do not use it with household alternating current (AC220V) power.
4.When inflating, allow the unit to cool down for 10 minutes after every 10 minutes of continuous operation to prevent damage to the pump and accessories, and to extend motor life. For inflating rubber boats, it can operate continuously for 30 minutes.
5.Typically, tyres will reach a normal tyre pressure of 30PSI in approximately 3-5 minutes when inflating. Larger tyres will take slightly longer. If the gauge needle rapidly rises to 50-100PSI at the start of inflation, it indicates the airflow is obstructed and air is not entering the tyre. In this case, immediately remove the nozzle connector and restart the operation, otherwise the motor and gauge may be damaged.
6.Do not leave the unit unattended while in use. Constantly monitor tyre pressure and avoid over-inflation.
7.After use, ensure the nozzle lever is straightened to prevent the internal rubber from losing its elasticity due to fatigue.
8.The plug of this pump contains a fuse. If the pump does not start, open the plug to check and replace the fuse (it is a 10A fuse).
9.This unit should be kept away from moisture, heavy impacts, and mud ingress. Keep it out of reach of children to prevent them from getting hurt.
10.The required pressure for each tyre varies. Please refer to the markings on the side of your car tyre or consult your vehicle manufacturer.
11.Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
12.Actual product colours may vary due to monitor settings & lightings.
