Description
Create a reliable automatic watering system without a tap or power outlet. This solar drip irrigation system is made for balconies, patios and small gardens. A ground-staked solar panel features manual angle adjustment for maximum sun exposure without extra wiring. A large built-in battery supports long operation, and multiple operating modes enable automatic cycling. Just prepare a water container, set the watering duration and interval, and the system delivers precise watering to up to 10 potted plants. Whether for daily care or holidays away from home, it delivers dependable irrigation.
Features
• [6 Auto-Watering Modes]: Choose from six preset schedules to match the watering needs of your plants.
• [Deep Root Watering]: Drippers deliver water directly to the root zone, saving water and improving efficiency.
• [Anti-Siphon Connector]: A dedicated connector prevents backflow for long-term, stable irrigation performance.
• [Clear Status Indicator]: Visible indicator lights display power and operational status clearly for easy monitoring.
• [Complete DIY Kit]: Includes a hose, connectors, drippers and all parts for a custom layout.
Specifications
Solar Panel Dimensions: 15cm (W) x 9.5cm (D) x 31.5cm (H)
Dripper Dimensions: 2.5cm (W) x 8cm (H)
Filter Dimensions: 4cm (W) x 5.5cm (H)
T-Connector Dimensions: 3cm (W) x 3cm (H)
Anti-Siphon Valve Dimensions: 2cm (W) x 3cm (H)
Hose Length: 10m
Materials: Polycrystalline Silicon Laminated Glass + Aluminium Frame + ABS
Solar Panel Main Colour: Black
Power Source: 1.5W Solar Panel
Battery Type: 3.7V 1500mAh Rechargeable Battery
Charging Time: 4-6H
Using Time: Up to 50 Days (depending on usage frequency)
Pump Power: 1W
Max. Water Flow of Pump: 400ml/min
Watering Interval Settings: 24H/72H
24H Watering Duration Settings: 1min/5mins/10mins
72H Watering Duration Settings: 1min/5mins/15mins
Control Method: Buttons
Operating Temperature: 1℃~40℃
Storage Temperature: -10℃~50℃
Indoor/Outdoor Use: Outdoor
Installation Type: Ground Stake
Waterproof Rating: IP65
Assembly & Installation Required: Yes

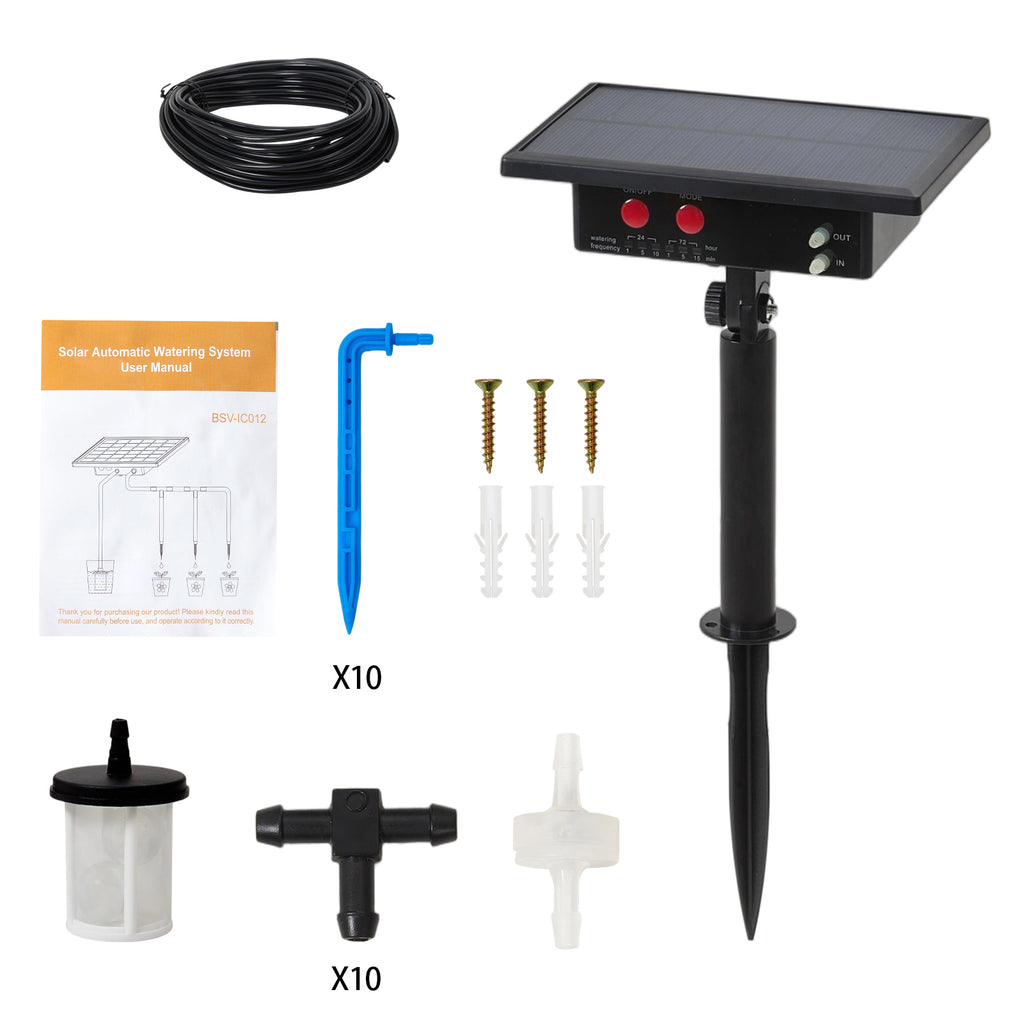

Package Content
1 x Solar Panel with Controller
1 x Water Level Sensor Cable
10 x Drippers
10 x T-Connectors
1 x 10m Hose
1 x Filter
1 x Anti-Siphon Valve
3 x Screws
1 x User Manual
Package Specifications
Package Dimensions(W x D x H): 21.5cm x 18cm x 5.5cm
Gross Weight: 0.6kg
Notes
- Please read the instruction manual carefully before use and keep it for future reference.
- The height of the solar panel with the controller should be above the water level and must be less than 1.5m.
- Fix the solar panel in a position where the sunlight can direct it. Adjust the angle of the panel to reach sunshine as much as possible.
- In order to allow each potted plant to get the same amount of water, please ensure that the height of the drip irrigation pipes of each potted plant is approximately the same.
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings & lightings.
Important Tips
- Do not disassemble this product by yourself.
- Do not vigorously vibrate, beat or hit the product.
- It is strictly forbidden to throw this product into fire to avoid the risk of fire or explosion.
- Children should use this product under the guidance of their parents.
- When the ambient temperature is higher than 40℃ or lower than 0℃,the product may fail to work; please avoid using it.
- It is forbidden to put the product into water. And the side with the switch button must be faced down; otherwise, water may enter.
- Be sure to use a water filter at the water inlet pipe interface; otherwise, the main unit will be at risk of damage.
- Choose a sunny place to install the product and clean the dirt on the solar panel regularly to help improve the charging efficiency.
