Description
This laser level is crafted for users needing precision and convenience. It projects horizontal, vertical, and accurate cross lines, ideal for measuring and alignment tasks. The tool offers self-levelling for angles less than 4° and manual mode for free positioning. Emitting thin and clear green laser lines that maintain high accuracy over long distances, it is suitable for both indoor and outdoor spaces. Featuring the capability to project diagonal lines at any angle, it meets diverse measurement needs. Additionally, equipped with a green magnetic target plate, it can assist in measurements and ensure the accuracy of measurement points.
Features
- [Long-lasting Durability]: Built with an ABS housing and rubberised finish for a comfortable grip and enhanced longevity.
- [Clamp Lock Mechanism]: The clamp-style locking mechanism prevents displacement of the pendulum, thereby reducing impact damage.
- [Dust and Splash Resistant]: Equipped with an IP54 rating, effectively shielding the device from dust and water splashes.
- [Compact Design]: Its small size makes it easy to carry around and operate.
- [Easy Storage]: Comes with a storage bag for convenient storage and protection of the device.
Specifications
Laser Level Dimensions: 5.5cm(W) x 7.9cm(D) x 7.8cm(H)
Material: ABS
Finish: Rubberised Finish
Colour: Black + Green
Laser Beam: Green
Self-leveling Range: ±4°
Measurement Accuracy: ±0.2mm
Laser Class: Class 1
Operating Distance: 15-20m
Laser Wavelength: 520 nm
Projection Angle: 120 degrees
Line Width: 1.2mm
Power Source: 2 x AA Batteries(Not Included)
Protection Rating: IP54
Mounting Thread: 1/4" -20
Leveling Method: Self-leveling Mode + Manual Mode

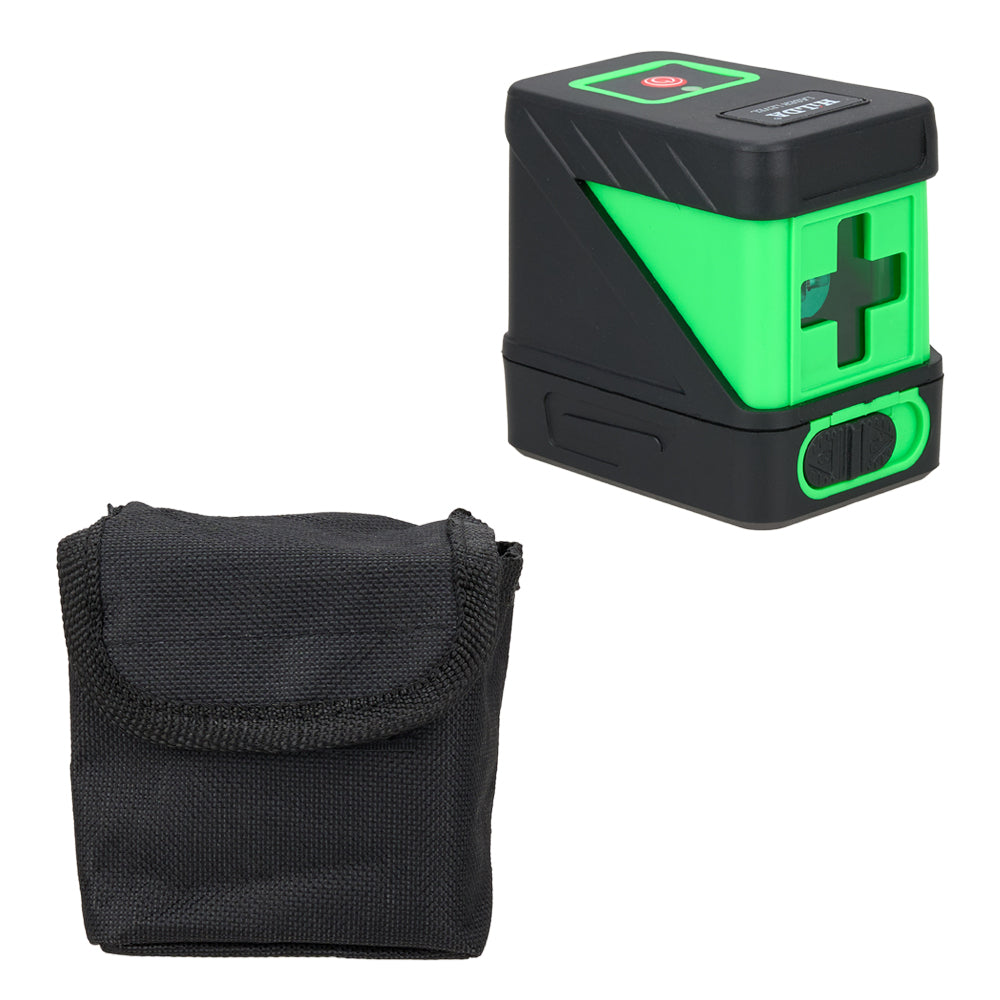

Package Contents
1 x Green Laser level
1 x Green Target Plate
1 x Storage Bag
1 x User Manual
Package Specifications
Package Dimensions(W x D x H): 12cm X 11.5cm X 11cm
Gross Weight: 0.36kg
Notes
-WARNING - Do not look directly into the laser.
-Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
-Actual product colours may vary due to monitor settings & lightings.
