Description:

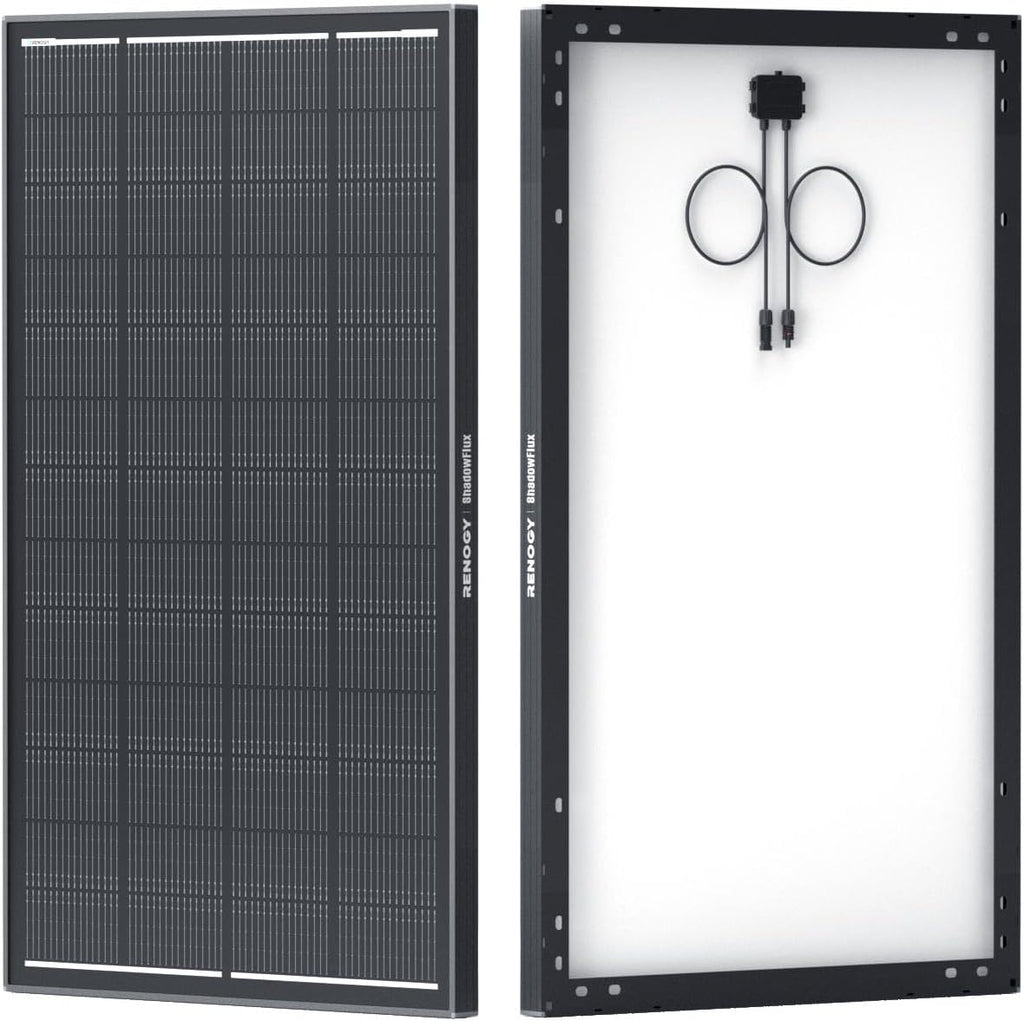

This N-type off-grid solar panel is specifically designed for mobile or off-grid scenarios such as RVs, camping, boats, and remote areas. Featuring Renogy’s advanced ShadowFlux anti-shading technology, it effectively enhances power generation in shaded areas caused by buildings, vegetation, or dirt, while reducing the risk of hot spots to ensure reliable output. With an open-circuit voltage of 36.5V, this high-performance module utilizes Renogy’s advanced N-type solar cells and 16BB busbar technology, achieving an efficiency of up to 20.7%. It improves photoelectric conversion efficiency while minimizing hot spots and micro-cracks, thereby extending service life and delivering superior performance. Additionally, its IP67 protection rating allows it to withstand extreme weather conditions, including ice, snow, heavy rain, and small hail. Whether for weekend camping or long road trips, it provides reliable, consistent clean energy support.
Features:
- Reinforced Frame: Features an aluminum alloy frame exceeding 1.1mm in thickness, delivering a sturdier structure that effectively protects your solar panel.
- Versatile Applications: Ideal for RVs, camper vans, boats, gardens, and farms.
- Built for Harsh Weather: The ShadowFlux panel design withstands heavy snow loads and strong winds, maintaining reliable performance even in the harshest weather conditions.
Specifications:
Overall Dimensions: 76.4cm W x 3cm D x 126.2cm H
Material: N-Type Solar Cells, 16BB Technology, Aluminum Alloy
Max Power at STC: 200W
Open Circuit Voltage: 36.5V
Short Circuit Current 6.86A
Optimum Operating Voltage: 31.3V
Optimum Operating Current: 6.38A
Operating Temperature: -40°F~185°F / -40℃~85℃
Maximum System Voltage: 1000VDC
Cell Type: N-Type Cell
Efficiency: 20.7%
Maximum Series Fuse Rating: 15A
Protection Rating: IP67
Package Content:
1 x N-type Off-grid Solar Panel
Package Specifications:
Package Dimensions (WxDxH): 135.4 x 86.7 x 6cm
Gross Weight: 144.6kg
Notes:
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings & lightings.
