Description

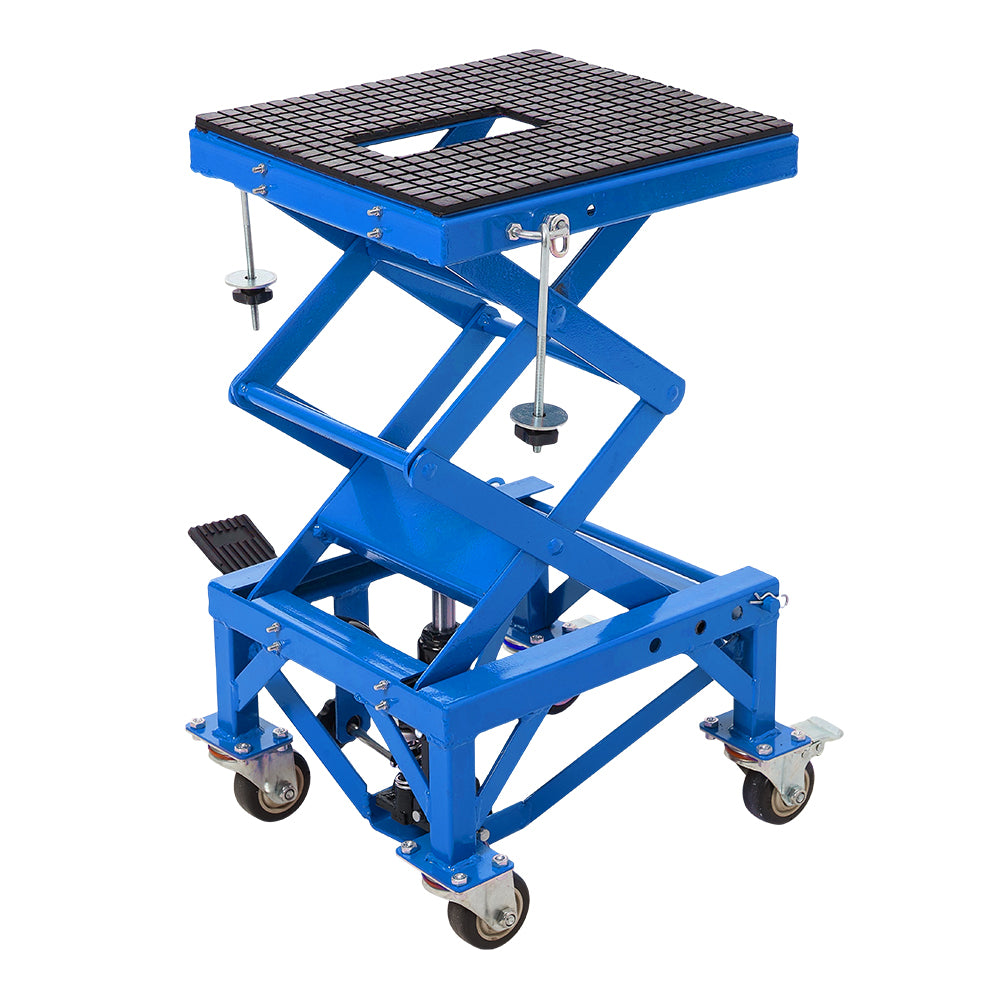

This hydraulic lift stand is an efficient tool specifically designed for motorcycle maintenance and repair. It seamlessly integrates an advanced hydraulic system with a stable scissor-type structure to significantly enhance work efficiency. Constructed with an oil-resistant and rust-proof metal frame, the lift ensures long-term durability while supporting up to 165 kg, meeting the maintenance needs of most motorcycles. The adjustable height design provides flexible and convenient operation, and the spacious top platform features a non-slip textured rubber pad that securely holds the bike while effectively protecting the motorcycle's paint from damage.
Features
- Equipped with a safety lock bar for secure operation and accident prevention.
- Includes J-hooks, U-bolts, washers, and threaded knobs for versatile motorcycle securing options.
- Features two 360° swivel wheels and two lockable wheels for easy mobility and stable positioning.
- Foot pedal operation allows easy motorcycle lifting without requiring you to bend down.
- Compact design saves workshop space while maintaining full functionality.
Specifications
Width: 54cm
Depth: 53cm
Adjustable Height: 35-90.5cm
Colour: Blue
Frame Material: Carbon Steel
Surface Treatment: Power Coating
Top Platform Material: Rubber
Product Type: Hydraulic Lift Stand
Weight Capacity: 165kg
Operation Type: Foot-operated
Wheels Included: Yes
Handle(s) Included: No
Number of Wheels Included: 4
Assembly Required: Yes
Package Contents
1 x Hydraulic Motorbike Lift Stand
1 x User Manual
Package Specifications
Package Dimensions (WxDxH): 46 x 45 x 35cm
Gross Weight: 27kg
Notes
1. Please read this instruction manual carefully. Note the safety instructions & warnings. Use the product correctly and with care for the purpose for which it is intended.
2. The maximum load is 165kgs. DO NOT exceed this rated capacity.
3. Use this lift for lifting purpose only. Do Not use it for any other purpose it is not designed to perform.
4. Keep children and unauthorized persons away from the work area.
5. Only use this lift on a surface that is stable, level, dry and not slippery, and capable of sustaining the load. Keep the surface clean, tidy and free from unrelated materials and ensure that there is adequate lighting.
6. Before lifting ensure the motorcycle is adequately secured to the lifting platform with threaded knobs, big washers, J-hooks and U-bolts.
7. When the platform has been raised to the working height, ensure the locking bar is engaged to prevent accidental lowering.
8. Always keep your hands and feet away from moving parts.
9. When work is done, check under lift and motorcycle to ensure that there are no obstructions and that it is safe to lower the unit. Remove the locking locking bar and then SLOWLY turn the release valve to GENTLY lower the lift.
10. Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
11. Actual product colours may vary due to monitor settings & lightings.
MAINTENANCE
1. When not in use, the lift must be stored in the lowest position in a dry location to minimize ram and piston corrosion.
2. Keep the lift clean and wipe off any oil or grease. Lubricate all moving parts.
3. Periodically check the ram and piston for signs of corrosion. Clean exposed areas with a clean oiled cloth.
4. Before each use check all parts. If any part of the lift is damaged or suspect, remove the lift from service and take necessary action to repair.
5. When lift efficiency drops, open the release valve and pump the lift foot pedal rapidly 15 to 20 times to purge away air from the hydraulic system.
