Description

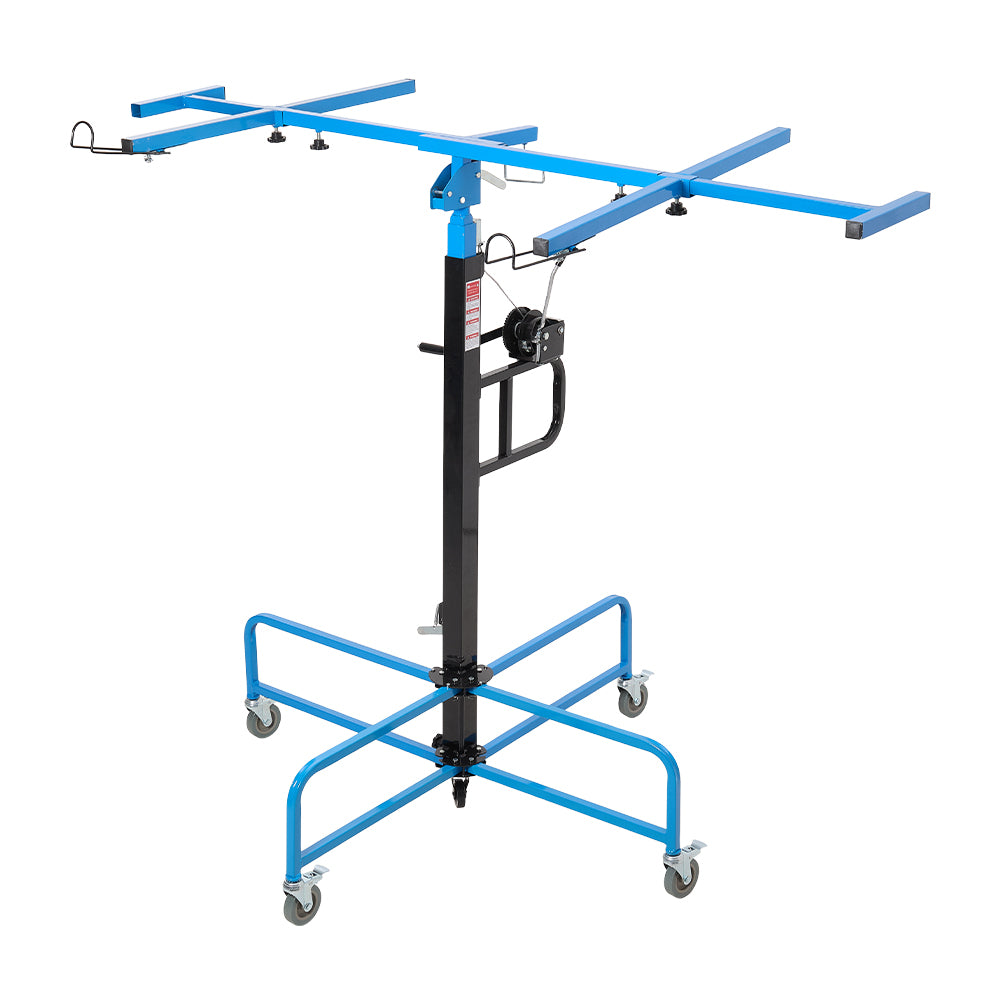

This plasterboard lift is your capable assistant for construction and renovation, specifically designed for lifting and precisely positioning plasterboards. Built with a robust carbon steel frame, it ensures strong load-bearing capacity and stability. It effortlessly lifts heavy loads up to 400 centimeters in height and can be lowered to 110 centimeters for panel loading, catering to various usage requirements. Featuring adjustable height and telescopic arm functions, it supports 360-degree rotation and a 45-degree tilt of the support bracket, allowing flexible adaptation to different work scenarios. This plasterboard lift not only reduces worker fatigue but also significantly enhances work efficiency, making it an ideal choice for your projects.
Features
- [Anti-Slip Design]: The support hook securely fastens plaster boards or other materials onto the lift, preventing them from slipping during placement.
- [Ease of Operation]: Featuring a winch design with a braking mechanism for easy and smooth lifting and lowering operations.
- [Enhanced Mobility]: Equipped with four lockable swivel wheels to ensure flexible movement and maintain stability in the desired position for safety.
Specifications
Bottom Width: 133cm
Support Arm with Hook Length: 118cm
Adjustable Height Range: 173-400cm
Horizontal Extension Range: 118-275cm
Material: Carbon Steel
Colour: Blue
Product Type: Plasterboard Lifter
Maximum Liftable Plasterboard Size: 120 x 280cm
Max. Load: 65kg
Max. Lifting Height: 400cm
Min. Loading Height: 110cm
Tilting Angle: 45°
Wheels Included: Yes
Number of Wheels Included: 5
Brakes Included: Yes
Orientation: Freestanding
Assembly Required: Yes
Package Contents
1 x Plasterboard Lifter
1 x User Manual
Package Specifications
Carton A:
Package Dimensions (WxDxH): 147 x 36 x 16cm
Gross Weight: 25.25kg
Carton B:
Package Dimensions (WxDxH): 75 x 40 x 17cm
Gross Weight: 16.7kg
Notes
-Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
-Actual product colours may vary due to monitor settings & lightings.
Special safety instructions
1.ALWAYS read the instructions before use, and observe all warnings.
2.ALWAYS inspect the plasterboard lift each day before use and pay particular attention to the condition of the wire.
3.ALWAYS allow the plasterboard lift to reach room temperature before use. If you move the plasterboard lift from a cold room to a warm one, condensation may form, which may affect the function of the brake!
4.Check before use that the brake drum is clean and dry.
5.NEVER use the plasterboard lift unless both arms are secured with the lock tab.
6.ALWAYS keep the work area free of obstructions.
7.ALWAYS wear a helmet when using the plasterboard lift.
8.ALWAYS be aware of obstructions above the plasterboard lift when lifting boards.
9.NEVER use the plasterboard lift for lifting objects other than plasterboards and similar.
10.NEVER lift more than one board at a time. Never lift more than 65 kg.
11.No more than 2 plasterboards during work.
12.Before each use, check the wire rope and pulleys at 2 places add a little oil to reduce wear.
Maintenance
1.Inspect the wire before each work day. If it shows signs of wear, replace it immediately (see the instructions which accompany the new wire).
2.Lubricate the wire rollers occasionally. Raise the telescopic sections to access the internal wire rollers. The brake drum must not come into contact with any oil or grease!
3.Lubricate the wheel bearings on the base occasionally.
4.If the telescopic sections do not run smoothly, lubricate the exteriors with paraffin.
5.Store the plasterboard lift in a clean, dry location.
