Description:

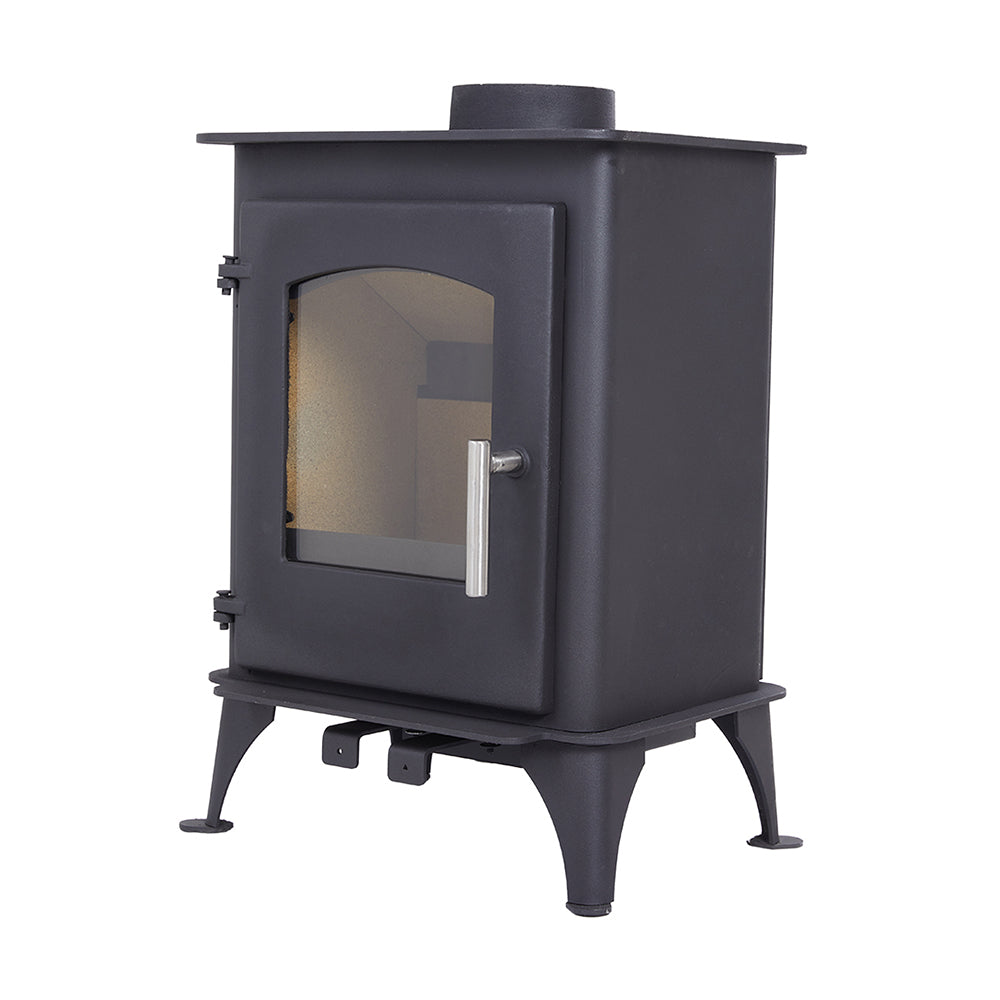

With its classic design and excellent performance, this wood burning stove is the ideal choice for home heating. It is constructed of high quality steel, ensuring durability and extended service life. The large glass view presents you with a dancing flame, adding a comfortable atmosphere to the space. With a 5kW heating output, it quickly brings warmth and comfort to your room. It is worth mentioning that its combustion chamber is surrounded by firebricks, providing additional security. And it uses an airwash system that keeps the front heat resistant for a better view of the fire. The unique airflow control system supports steady burning throughout the night, keeping you warm on cold nights. In addition, the vent allow air to flow into the interior of the stove, supporting the complete combustion of the fuel.
Features:
- Designed to burn wood Logs or charcoal.
- The ash pan is removable, making cleaning more convenient and worry-free.
- There are four supporting legs at the bottom to ensure its stability and safety.
- This wood burning stove is easy to assemble and can be easily completed by following the instruction manual.
Specifications:
Overall Dimensions: 42.5cm(W) x 33.7cm(D) x 59.3cm(H)
Product Type: Wood Burning Stove
Material: Steel+Firebrick+Glass
Colour: As Shown In The Picture
Heat Output: 5KW
Flue Collar: 5” Diameter
Fuel Type: Wood Logs / Charcoal
Wood Logs Size: Max 25cm In Length(greater than 6cm in dia. should be split)
Total Efficiency: 76.9% (When Burning Wood)
Mean CO Emission(at 13% O₂): 0.10%
Mean Flue Gas Temperature: 300℃
Flue Gas Mass Flow: 4.5g/s
Mean CnHm(at 13% O₂): 73Nmg/m³
Mean NOx(at 13% O₂): 79Nmg/m³
DIN Plus Dust(at 13% O₂): 23Nmg/m³
Assembly Required: Yes
Safety Distances from Combustibles:
Minimum Distances to combustible material using(single connection flue)
Back Wall: 650mm
Side Wall: 550mm
Front Hearth Projection: 225mm
Temperature Under Stove: 44℃
Package Content:
1 x Fireplace Stove
1 x User Manual
Package Specifications:
Package Dimensions(W x D x H):67cm X 50cm X 41cm
Gross Weight: 75kg
Notes:
- PLEASE READ ALL THE INSTRUCTION CAREFULLY BEFORE INSTALLATION, and retain it for future reference.
- This product is heavy and requires two or more people to work together for safe and efficient installation.
- It is a requirement to fit a CO monitor in the same room as the appliance.
- Children and adults should be made aware of the hazards of hot surfaces. Never allow young children to be left unsupervised in a room with a hot fireplace.
- When used for the first time, the fireplace may smell a little, due to gas being given off. The gas is not toxic but the room should be thoroughly ventilated.
- WARNING! MAKE SURE THE FIRE IS COMPLETELY BURNED OUT BEFORE ATTEMPTING TO CLEAN THE FIREPLACE.
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings & lightings.
