Description
Streamline everyday kitchen tasks with this sleek double-bowl kitchen sink. Featuring two separate basins, it makes washing and rinsing effortless while food prep stays organised and uninterrupted. An integrated drainer on the right provides a convenient space for drying plates, cutlery and freshly rinsed ingredients. Smooth rounded corners keep water flowing and reduce hard-to-reach grime, so cleaning feels quicker after busy cooking. A complete drainage package supports straightforward installation, helping you set up confidently and enjoy reliable performance from day one.
Features
• [Quartz Resin Composite Build]: One-piece construction resists daily wear, stains and high temperatures.
• [Standard 35mm Tap Hole]: Pre-drilled opening enables quick tap installation without additional modifications.
• [Overflow Protection]: A built-in overflow port helps prevent accidental water spills when the sink is left unattended.
• [Clog & Odour Control]: A removable basket strainer catches food debris while a lid blocks odours and holds water when needed.
Specifications
Overall Dimensions: 116cm (W) x 50cm (D) x 20cm (H)
Pre-Drilled Faucet Hole Diameter: 35mm
Overflow Hole Diameter: 30mm
Material: Quartz Resin Composite + 201 Stainless Steel
Colour: Graphite Grey
Shape: Rectangular
Type: Double Bowl
Number of Tap Hole(s): 1
Tap Included: No
Installation Type: Under-mount
Assembly Required: Yes

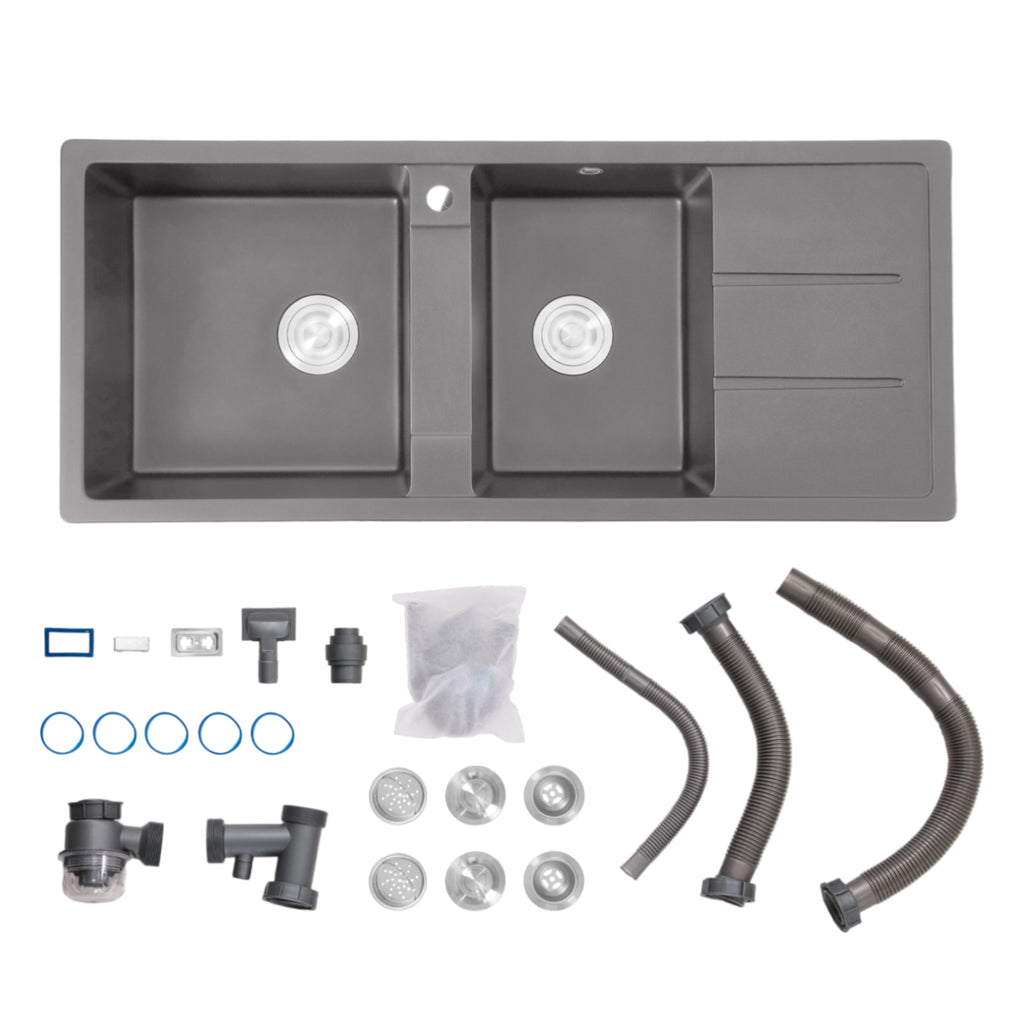

Package Content
1 x Double Bowl Sink
1 x Waste Kit
Package Specifications
Package Dimensions(W x D x H): 127cm x 61cm x 33cm
Gross Weight: 29kg
Notes
- Always wear eye protection and cut‑resistant gloves when cutting the countertop or drilling holes. Flying debris or tool slips can cause serious injury.
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings & lightings.
Installation Instructions
- Turn the sink upside down and place it in exactly the place on the countertop where you want to install it.
- Measure the width, length and depth of the sink.
- Make sure the new sink will be sufficient space to install a battery outlet located under the sink.
- Mark the location of the sink by tracing its perimeter. Then remove the sink from the countertop.
- Draw a cut line inside the perimeter that will copy the original wrap around the sink, but it will be shifted by 12 mm.
- If the sink comes with a template for the sink cutout, use the template for tracing.
- In this case, make sure you have a template placed in the right way.
- When you are sure of the placement, at any point along the cut line, drill a hole big enough to accept the blade from your jigsaw. With a jigsaw, cut the opening along the cut line (the line inside the sink's perimeter line).
- Before stamping the faucet's hole, check the place of the predrilled hole at the bottom.
- Using the drill with a dill bit ø3 mm drill holes around the edge of the pre-drilled hole. Hold a sharp pointed object (in any case, a screwdriver) and a hammer and strongly wallop in the middle of the predrilled hole. Then cleans up the hole fine with rasps.
- Before installing the sink, apply sanitary silicone (not included) on its inner edge.
- Carefully flip the sink and insert it into the hole of the countertop. Then install the other parts of the siphon.
