Description

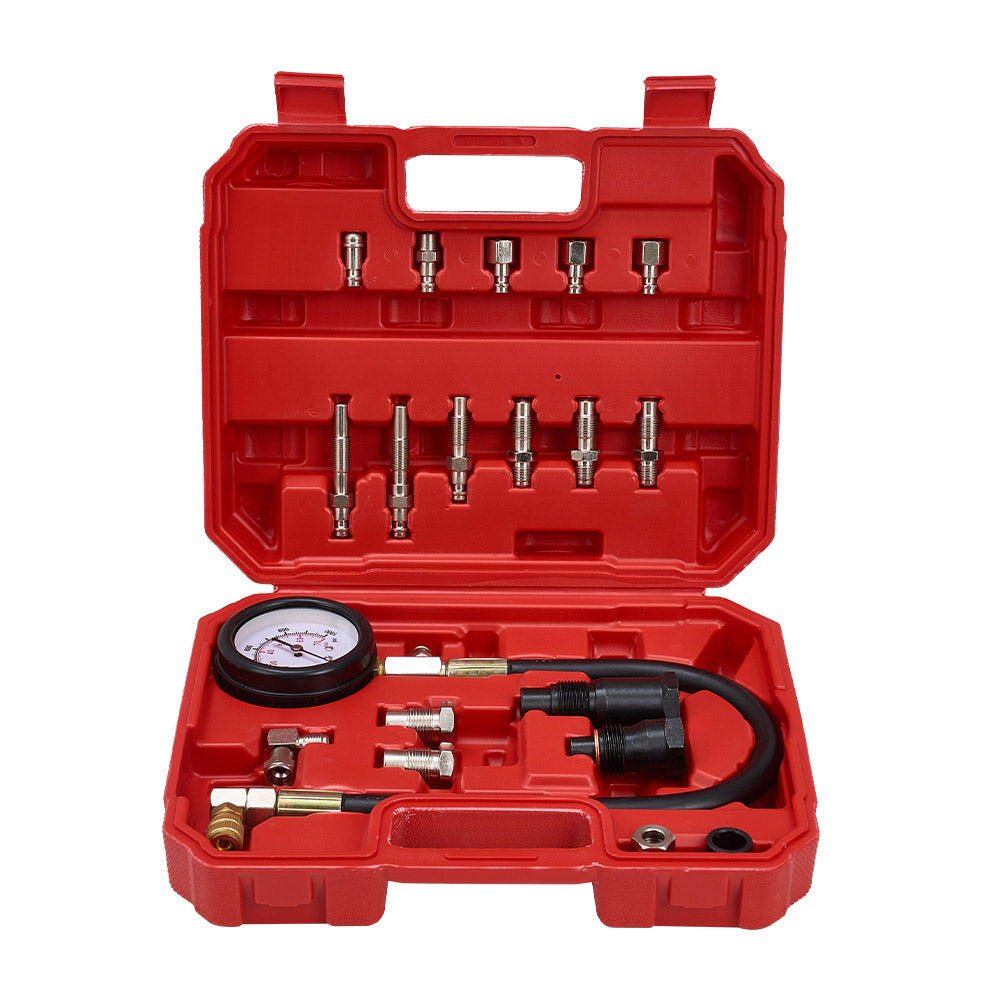

This diesel engine compression tester kit is designed for the efficient evaluation of cylinder sealing and compression performance. It quickly detects faults such as piston ring wear, valve wear, cylinder wall cracks, and blown head gaskets. Equipped with a dual-scale pressure gauge and a quick-release button valve, it ensures accurate measurement and convenient operation. The kit provides a variety of adapter sizes, allowing for easy replacement of connectors to achieve broader application. With its twist-resistant and extreme-pressure-resistant rubber hose, it ensures safe use. Whether you are a professional technician or a DIY enthusiast, this tool kit is your ideal assistant.
Features
- [Premium Material]: Made of high-quality metal and rubber, ensuring durability and longevity.
- [Scratch Protection]: Equipped with a rubber cover to protect the gauge tool from scratches.
- [Deep Thread Design]: The adapters feature a deep-thread design for a secure fit, enhancing stability.
- [Easy Storage]: Comes with a plastic storage case for convenient transport and storage.
Specifications
Storage Case Dimension: 29cm W x 23cm D
Pressure Gauge Length: 57cm
Material: Metal + Rubber + Plastic
Tool Colour: Black + Silver + Brass Colour
Storage Case Colour: Red
Test Range: 0-1000psi/0-70 bar (pressure gauge)
Portable: Yes
Storage Case Included: Yes
Assembly Required: No
Applicable Adapter Models:
1/8"NPT QUICK COUPLER
7/16"-20(F) QUICK COUPLER
M12X1.25(M)-7/16"-20(M) ADAPTER
M12X1.25(F)-M18X1.5(M) ADAPTER
M10X1.25 SHORT ADAPTER
M10X1.25 LONG ADAPTER
ZG1/8"(F)-MALE QUICK COUPLER
ZG1/8"(F)-M24X2(M) ADAPTER
7/16"-20(M)-7/16"-20(F)90°CONNECTER
ZG1/8"(F)-M24X15(M) ADAPTER
M10X1(M) ADAPTER
1/2"-19 LOCK NUT
QUICK CONNECT WITH BALL TIP
Package Content
1 x Engine Cylinder Compression Tester Kit
1 x User Manual
Package Specifications
Package Dimensions (WxDxH): 29 x 23.5 x 8.5cm
Gross Weight: 1.75kg
Notes
1.Please wear gloves and goggles when use.
2.This cylinder leakage test kit should be used by professional or under the guidance of a professional.
3.Always refer to equipment manufacturer's operation instruction, compare to the manufacturer's recommended readings.
4.Select neutral (or "park" if automatic transmission) and keep hands clear of the engine as engine rotation may occur when using this tool. The ignition MUST BE turned off.
6.Unscrew the adapter after the cylinder is cooled to prevent the hose from softening and not driving the adapter to rotate together.
7.The test can only be carried out after the engine reaches normal temperature.
8.If the threads do not match, do not twist the hose forcefully.
9.Please refer to the instruction for more details before the operation of this leakdown detector.
10.Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
11.Actual product colours may vary due to monitor settings & lightings.
