Description

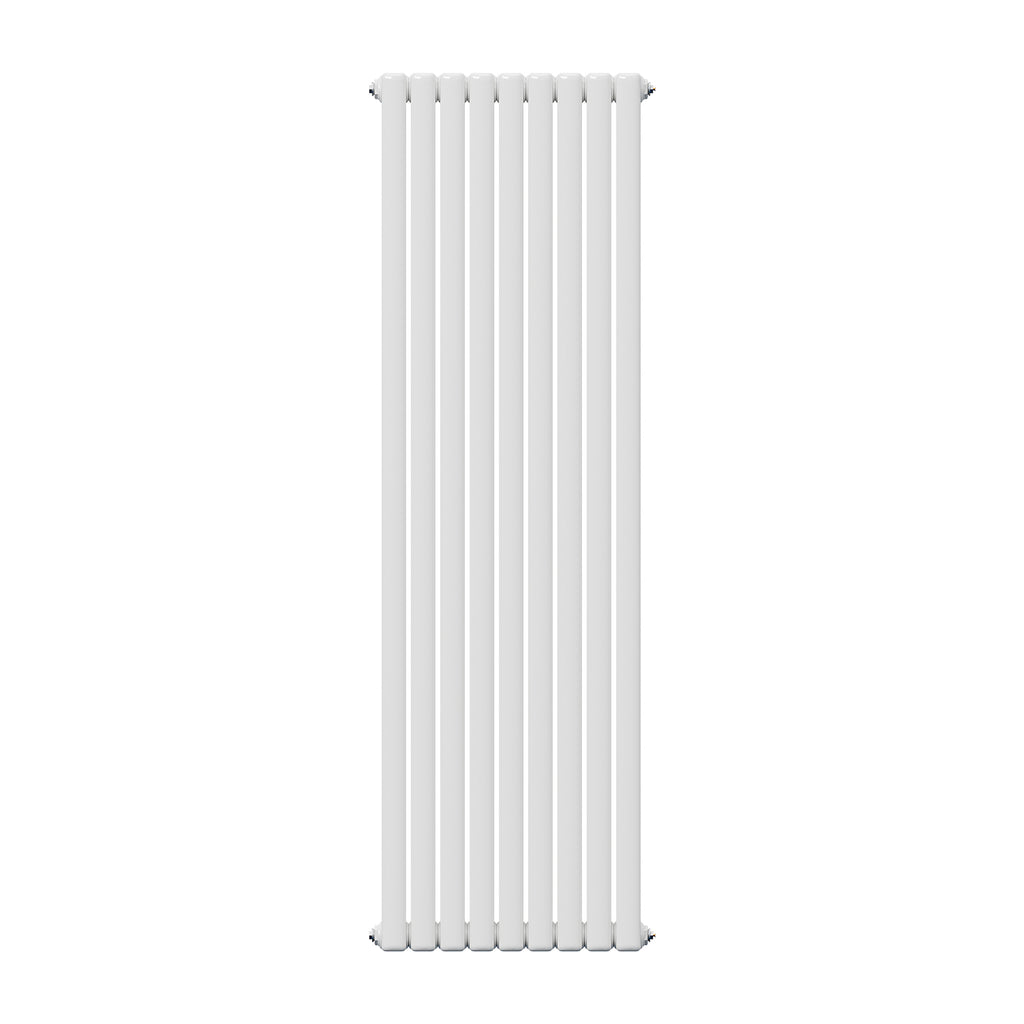

Blend stylish home aesthetics with steady indoor warmth without sacrificing living space. This column radiator boasts sleek, streamlined contours that deliver vintage‑infused industrial charm to complement diverse interior designs. Built with a robust metal casing, it withstands long‑term daily use while an internal epoxy resin coating effectively fends off limescale and corrosion. Operating via natural thermal convection, it warms surrounding air, enabling hot airflow to rise and cool air to sink for even whole-room heating. It creates consistent cosiness for living room relaxation or bedroom rest with steady, even warmth. Available in various sizes and configurations, it suits different room layouts while maximising heat dissipation performance.
Features
• [Premium Construction]: Mild steel construction with an epoxy internal coating for long-lasting performance.
• [Double-Column Design]: A double-column structure expands the heat-emitting area to deliver enhanced thermal performance.
• [Convenient Air Release]: A hand-operated air valve expels trapped air to restore consistent heating efficiency promptly.
• [Universal Connection]: Standard G1/2 inch water ports ensure compatibility with most household plumbing systems.
• [Space-Saving Mounting]: Wall-mounted installation optimises vertical space and preserves valuable floor area at home.
Specifications
Overall Dimensions: 54cm (W) x 180cm (H)
Column Width: 5cm
Column Spacing: 10mm
Product Type: Column Radiator
Material: Mild Steel
Finish: White
Type: 2 Column
Heat Output: 8721 BTU
Max. Temperature: 95℃ (recommended 75℃)
Rated Working Pressure: 1.0 MPa
Connection Thread: G 1/2"
Total Number of Columns: 18
Radiator Valve Included: No
Adapter Included: No
Installation Method: Wall-mounted
Orientation: Vertical
Drilling Required: Yes
Recommended Room Size: 32 m²
Package Content
1 x Column Radiator
1 x Accessory Pack
1 x Manual
Package Specifications
Package Dimensions(W x D x H): 181cm x 55cm x 11cm
Gross Weight: 48kg
Notes
- Compatible with most domestic boilers (including combi, system and regular boilers) and standard central heating pipework.
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings & lightings.
Safety Instructions
- Installation must be completed by professional technicians.
- Rated working pressure: 1.0mpa, overpressure use is prohibited.
- Pressure test is required after installation; no leakage before use.
Installation Steps
Step 1: Positioning & Drilling
1. Use a level for positioning to ensure horizontal balance.
2. Drill holes, install expansion screws and fix brackets.
Step 2: Hang the Radiator
1. Hang the radiator stably on the brackets.
2. Adjust the level, with no looseness and no tilt.
Step 3: Pipe Connection
1. Connect the water inlet and return pipe correctly.
2. Fix the valve during piping to prevent interface cracking.
Step 4: Fitting Installation
Install an air release valve at the top and a threaded plug at the bottom.
