Description

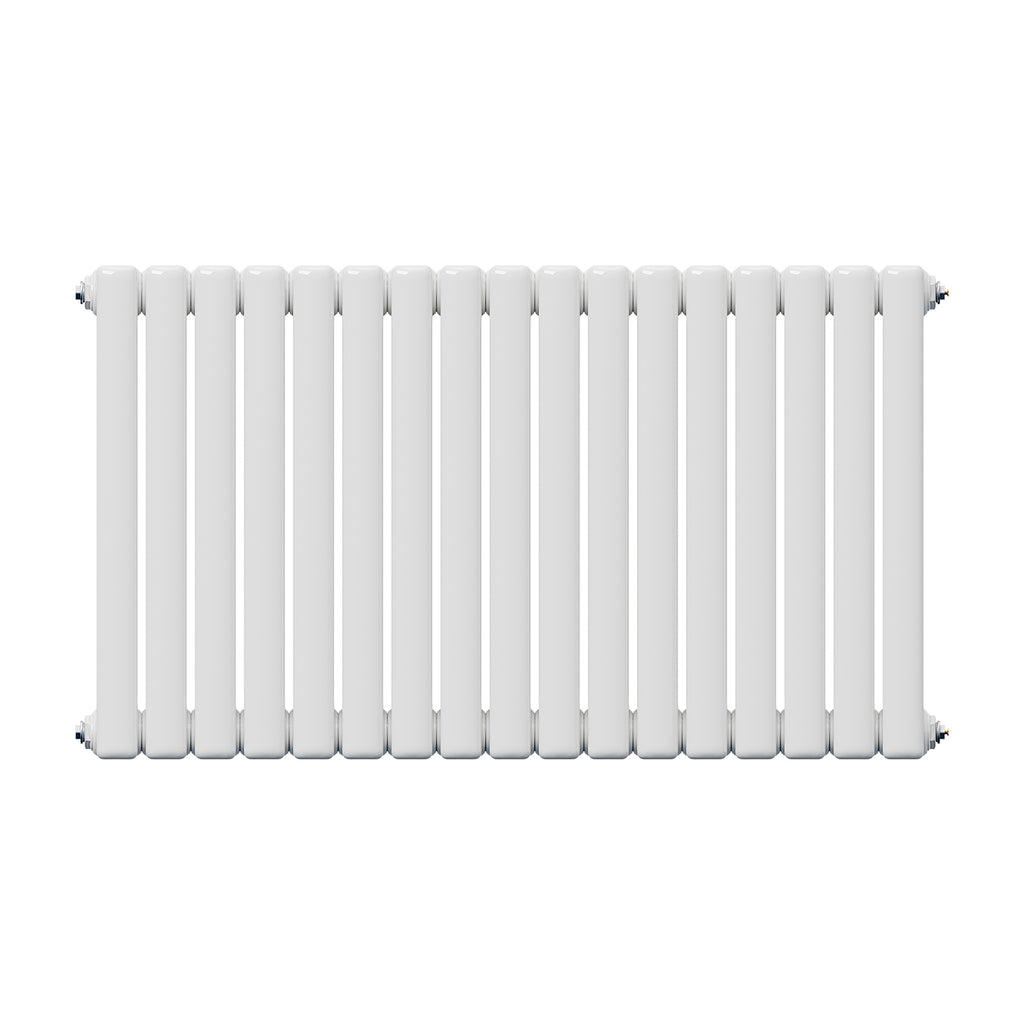

Bring warmth and elegance to your home with this stylish column radiator. Its sleek, classic design complements any modern or minimalist interior perfectly. By combining efficient air convection with gentle radiant heat, it creates a cosy, evenly warmed space throughout your room. The internal epoxy resin coating ensures excellent corrosion resistance, promising reliable performance for years to come. Whether placed in your living room, bedroom, or study, it is the perfect blend of sophisticated aesthetics and effective, soothing heating for your home.
Features
- Mild steel construction ensures lasting use.
- Double-column design for faster heat distribution.
- Hand-operated valve for convenient air release.
- Standard G1/2 ports fit for most plumbing.
- Wall-mounted installation saves floor space.
Specifications
Overall Dimensions: 102cm (W) x 60cm (H)
Column Width: 5cm
Column Spacing: 10mm
Product Type: Column Radiator
Material: Mild Steel
Finish: White
Type: 2 Column
Heat Output: 5626 BTU
Max. Temperature: 95℃ (recommended 75℃)
Rated Working Pressure: 1.0 Mpa
Connection Thread: G 1/2"
Total Number of Columns: 34
Radiator Valve Included: No
Adapter Included: No
Installation Method: Wall-mounted
Orientation: Horizontal
Drilling Required: Yes
Recommended Room Size: 20.5 m²
Package Content
1 x Column Radiator
1 x Accessory Pack
1 x Manual
Package Specifications
Package Dimensions(W x D x H): 61cm x 102cm x 11cm
Gross Weight: 39kg
Notes
- Compatible with most domestic boilers (including combi, system and regular boilers) and standard central heating pipework.
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings & lightings.
Safety Instructions
- Installation must be completed by professional technicians.
- Rated working pressure: 1.0mpa, overpressure use is prohibited.
- Pressure test is required after installation; no leakage before use.
Installation Steps
Step 1: Positioning & Drilling
1. Use a level for positioning to ensure horizontal balance.
2. Drill holes, install expansion screws and fix brackets.
Step 2: Hang the Radiator
1. Hang the radiator stably on the brackets.
2. Adjust the level, with no looseness and no tilt.
Step 3: Pipe Connection
1. Connect water inlet and return pipe correctly.
2. Fix the valve during piping to prevent interface cracking.
Step 4: Fitting Installation
Install an air release valve at the top and a threaded plug at the bottom.
