Description
Upgrade your cabinetry with this reliable set of cabinet door hinges. Made from high-hardness cold-rolled steel with a sleek silver finish, these hinges offer a clean, modern look that complements a wide range of furniture styles. The two-stage damping system allows doors to stay open between 45° and 110° while providing a gentle, controlled closure below 45°. A clip-on design enables quick installation and removal, while the 110° opening angle provides easy access to cabinet contents. Ideal for kitchen cabinets, wardrobes, bookcases and DIY renovation projects.
Features
• [Full Overlay Set]: Includes four full-overlay hinges, suitable for new installations or replacement of existing hardware.
• [3-Way Adjustment]: Offers precise adjustment in three directions for accurate door alignment with the cabinet frame.
• [Two-Stage Damping]: Allows the door to stay open smoothly and close softly while helping reduce slamming.
• [Standard 35mm Cup]: The 35mm cup diameter matches common pre-drilled holes in most wooden cabinet doors.
• [Screws Included]: Comes complete with mounting screws for convenient DIY installation and hinge replacement.
Specifications
Overall Dimensions: 11.5cm (W) x 6cm (D) x 2cm (H)
Cup Diameter: 35mm
Door Thickness Range: 16-26mm
Product Type: Full Overlay Hinge
Material: Cold-Rolled Steel
Colour: Silver
Type: Two-Stage Damping
Soft-Close: Yes
Adjustment: 3-Way
Max. Opening Angle: 110°
Mounting: Clip-On
Number of Hinges Included: 4
Package Content

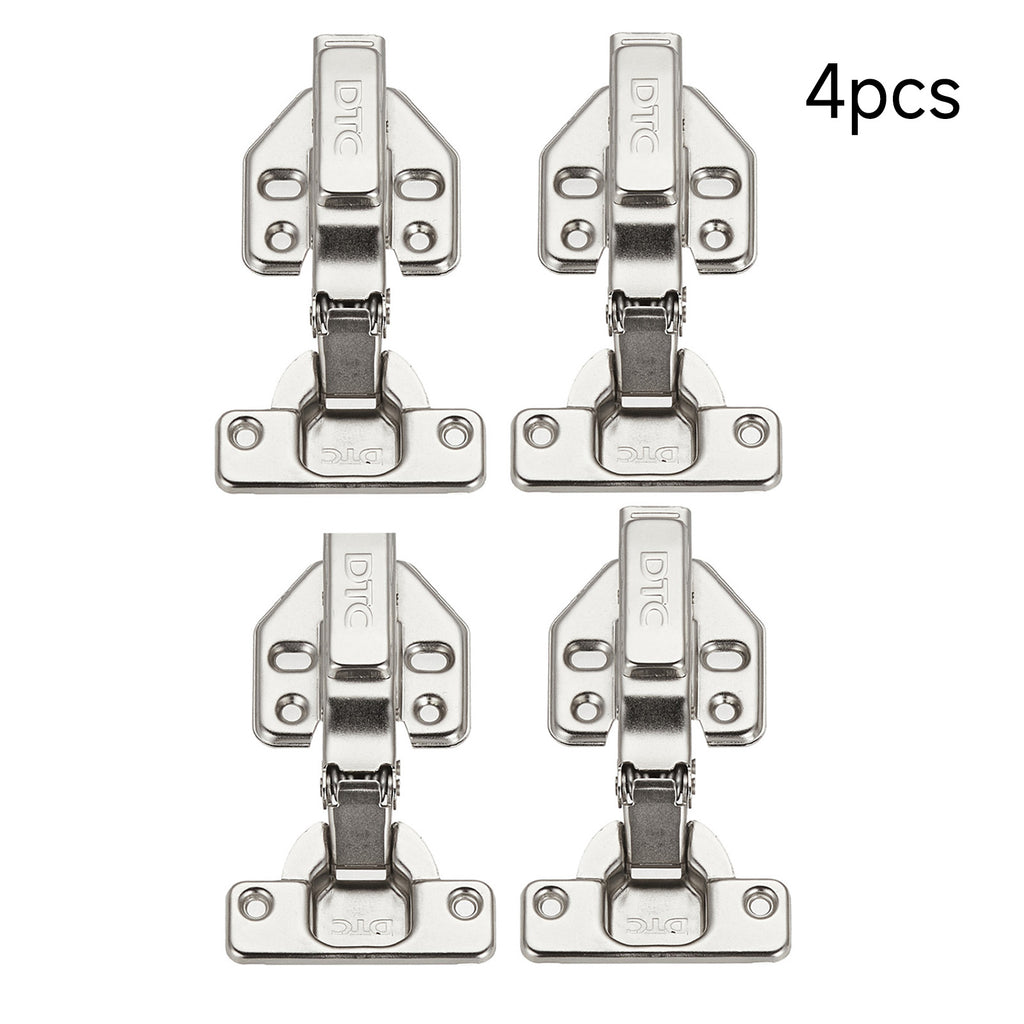

4 x Cabinet Door Hinges
1 x Screw Pack
Package Specifications
Package Dimensions(W x D x H): 23cm x 16cm x 5cm
Gross Weight: 0.5kg
Notes
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings & lightings.
