Description
Get perfectly aligned hinge holes effortlessly with our hinge jig! Adjustable rubber pressure plates stabilise the wood, while the adjustable edge locator ensures precise hole placement. The built-in double bearings reduces wobble for accurate drilling. It makes installing hinges quick and easy, giving professional results. The distance from the center of the 35MM hole to the edge of the board is fixed at 5mm, matching most hinges on the market. Suitable for 15-25mm wood, it is perfect for cabinet, kitchen, and wardrobe door hinges. Whether you are fitting new cabinets or replacing old hinges, it saves you time and effort.
Features
- Aluminium Alloy: Crafted from aluminium alloy for high strength, it withstands heavy use and resists deformation for long-lasting reliability.
- Exceptional Stability: The robust design ensures excellent stability during drilling, eliminating wobble and guaranteeing safe and accurate operation.
- Two Drill Bits: Supplied with both 35mm and 2mm drill bits, allowing users to select the appropriate size for efficient hole drilling.
Specifications
Hinge Jig Dimension: 16.7cm W x 5.6m D x 9.8m H
Wrench Dimension: 7cm W x 2m D
Hex Key Dimension: 7cm W x 6m D
Product Type: Hinge Jig
Material: Aluminium Alloy
Colour: Blue+Silver
35MM Hole to Edge Distance: 5mm
Suitable Wood Thickness: 15-25mm
Drill Bit Size: 35mm, 2mm
Installation Required: Yes
Package Content

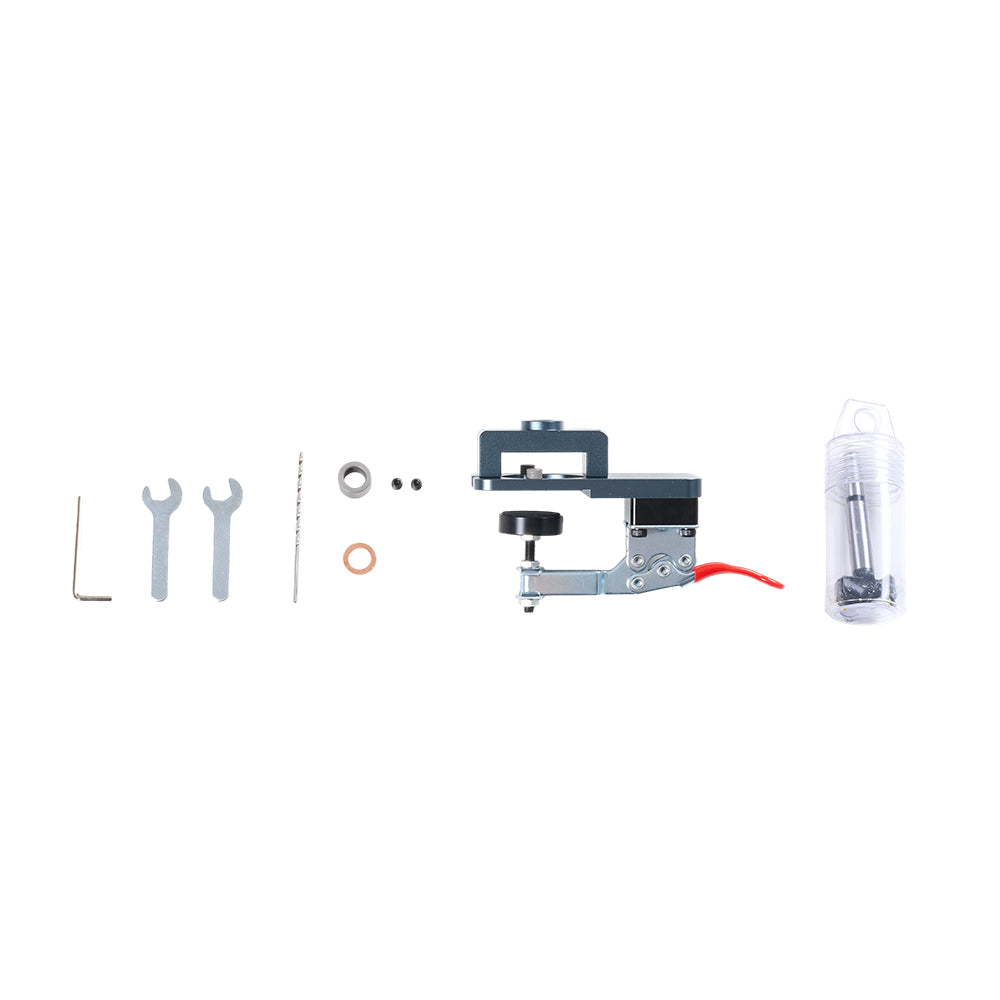

1 x Hinge Drilling Locator Body
1 x 35MM Drill Bit
1 x 2mm Drill Bit
2 x Wrenches
1 x Hex Key
Package Specifications
Package Dimension(WxDxH): 19 x 11 x 6cm
Gross Weight: 0.64kg
How to Use:
1. Adjust the drilling depth of the limit ring, normally 12-13mm.
2. Adjust the size to adapt to the thickness of the clamped board.
3. Quickly clamp the locking plate according to the drill mark.
4. Drill 35mm and left and right 2mm screw holes
5. Install hinge
Notes
-Applicable wood board thickness at 12-25mm.
-Drilling depths of 12-13 mm, controlled and locked by adjusting the limit ring according to the depth of the hinge fixture.
-35MM hinge opener only supports the use of 35mm opening drill bit, does not support the exchange of 40mm. 35mm hole to the edge is 5mm, suitable for most common hinge jigs.
-When not in use, keep it tidy check if the accessories are collected and place it in a dry place.
-Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
-Actual product colours may vary due to monitor settings & lightings.
