Description:

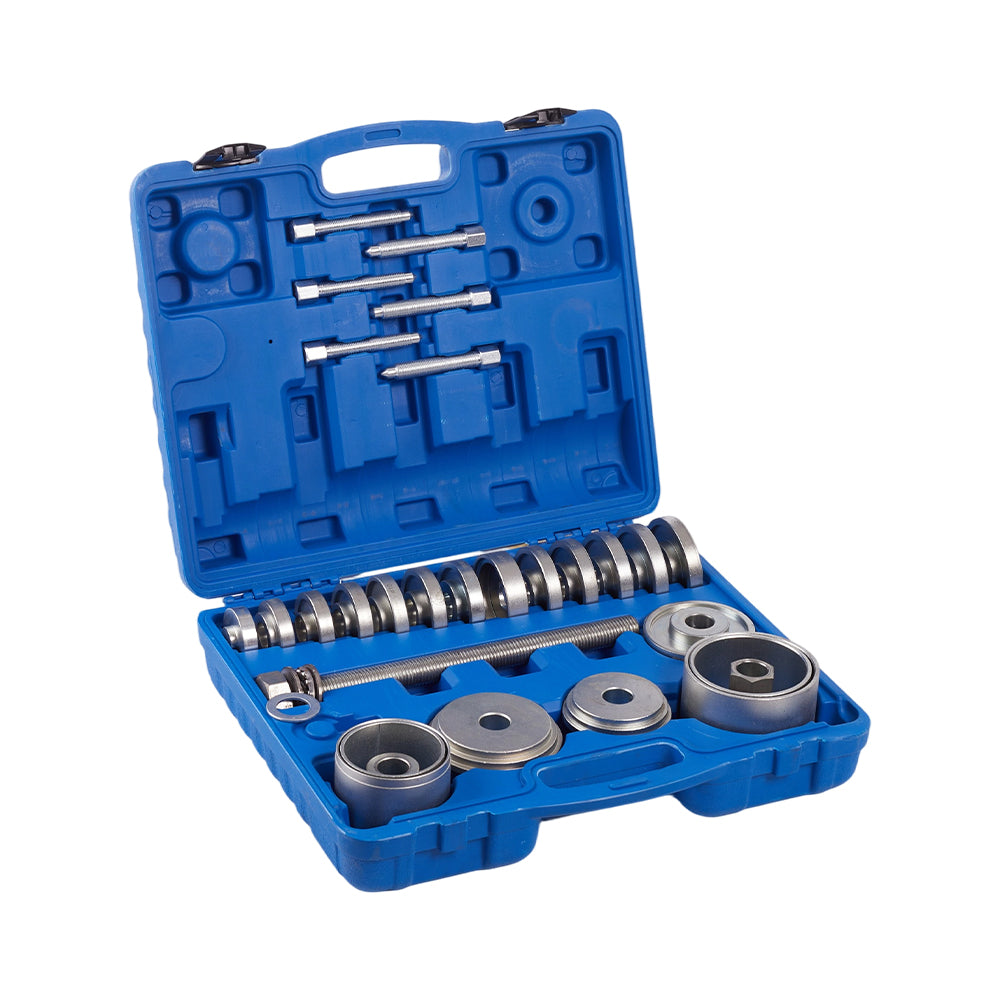

Handle wheel bearing servicing with precision using this comprehensive wheel bearing removal tool set. Specially developed for front-wheel-drive cars and light commercial vehicles, it enables quick and easy removal and installation of wheel bearings. All components are neatly stored in a blow-moulded carry case with designated slots to keep them protected, well-organised, and ready for use whenever needed.
Features:
• [High-Grade Material]: Manufactured from premium carbon steel with a galvanised finish for outstanding strength and long-term durability.
• [Versatile Compatibility]: Includes a wide range of sleeve and pressure plate sizes suitable for most common wheel hub and bearing sizes.
• [Clear Identification]: All adapter pieces are clearly etched or stamped with markings to support accurate and fast selection.
Specifications:
Product Type: Wheel Bearing Removal Tool
Material: Carbon Steel + Plastic
Finish: Galvanised
Colour: Silver
Case Colour: Blue
Pressure Plates: 50 | 55 | 59 | 63.3 | 66.6 | 70.3 | 71.5 | 73.1 | 73.4 | 74.8 | 77.5 | 81.5 | 83.4mm
Sleeves Outer with the Following Diameters: 76 | 86 | 91 | 102mm
Remove Replace Bolts: M12 x 1.5(3pcs) | M14 x 1.5(3pcs)
Shaft: 22.2mm x 300mm with Thrust Bearing
Push Nut F-SW: 32 x 60mm
Pressure Sleeve: ∅38 x 40mm
Mechanical Disc Diameter: 40 x 3mm
Set or Single Item:Set
Package Content:
1 x Shaft
14 x Pressure Plates
4 x Sleeves Outer
2 x Sleeve Plates
6 x Remove Replace Bolts
1 x Push Nut
1 x Pressure Sleeve
1 x Mechanical Disc
1 x Storage Case
Package Specifications:
Package Dimensions(W x D x H): 45cm x 11cm x 38cm
Gross Weight: 11.91kg
Notes:
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings & lightings.
