Description:

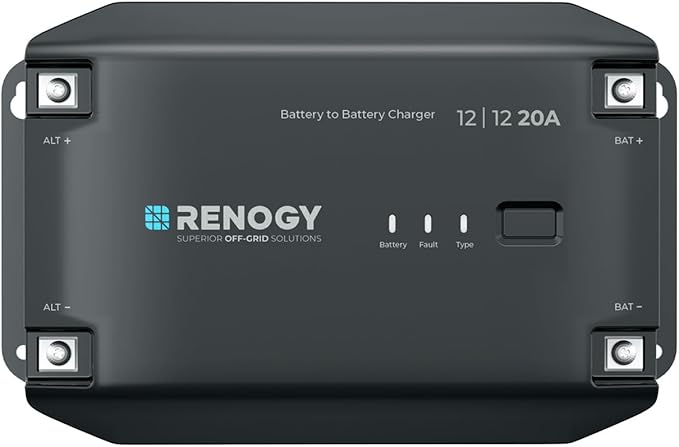

This DC-DC battery charger is engineered for versatile mobile power systems, ensuring both safety and efficiency. It features built-in alternator detection to charge only when the engine is running, preventing accidental drain of the starter battery during vehicle idle. Compatible with flooded, gel, AGM, and lithium batteries, it also offers a user-defined mode for customized settings. Equipped with an advanced BT-2 bluetooth module, it allows convenient remote monitoring and adjustment of settings via the DC Home app. Comprehensive protections—including overload, short-circuit, overvoltage, and overheat safeguards—plus intelligent thermal power management ensure reliable, high-efficiency charging in all conditions. Ideal for RVs, trucks, commercial vehicles, boats, and yachts alike.
Features:
- [Temperature Compensation]: The battery temperature sensor provides real-time data to optimise charging parameters for peak performance.
- [User-Friendly Layout]: Safe spacing between input and output terminals minimises the risk of accidental short circuits.
- [Lithium Battery Activation]: Enable or disable lithium activation via the app based on battery condition to extend lifespan.
- [Efficient Heat Dissipation]: Ventilation holes ensure low-noise, efficient cooling to prolong service life.
- [Wall-Mount Design]: Compact, lightweight wall-mountable design fits easily into any tight installation space.
Specifications:
Dimensions: 23.65W x 13.15D x 5.8H cm
Material: PC + ABC + Aluminium Alloy
Colour: Black
Model: RBC20D1U
System Voltage: 12V
Rated Charging Current: 20A
Rated Charging Power: 300W
Output Voltage Range:9-16V DC
Grounding: Common Negative
Alternator Input Voltage:
Traditional Alternator: 13.2-16.0V DC; Smart Alternator (Euro 6): 12-16.0V DC
Input Fuse Rating: 40A
Output Fuse Rating: 30A
Charging Efficiency: 94%
Operating Temperature: -25°C to 60°C
Self-consumption: <15mA
Terminal Range: 10AWG - 8AWG
Supported Battery Types: Flooded, Gel, AGM, Lithium batteries
Corrosion-Resistant Design: Yes
Waterproof Rating: IP20
Communication Protocol: RS485 Communication
Overload Protection: Yes
Short-Circuit Protection: Yes
Overheat Protection: Yes
Overvoltage Protection: Yes
Intelligent Output Power Regulation: Yes
Multi-Alternator Compatibility: Conventional and Smart Alternators
Installation Required: Yes
Package Contents:
1 x Battery Charger
1 x User Manual
Package Specifications
Package Dimensions (WxDxH): 28.5 x 17.5 x 10.8cm
Gross Weight: 1.6kg
Notes：
-Compatible with Renogy One Core and BT-2, each of which are available for separate purchase.
-Only the smart generator requires an ignition signal wire.
-Note: If the lithium battery has a built-in BMS, an external temperature sensor is not required.
-For lithium batteries, the lithium battery activation feature can be enabled or disabled. You can adjust this setting in the DC Home app.
-Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
-Actual product colours may vary due to monitor settings & lightings.
