Description:

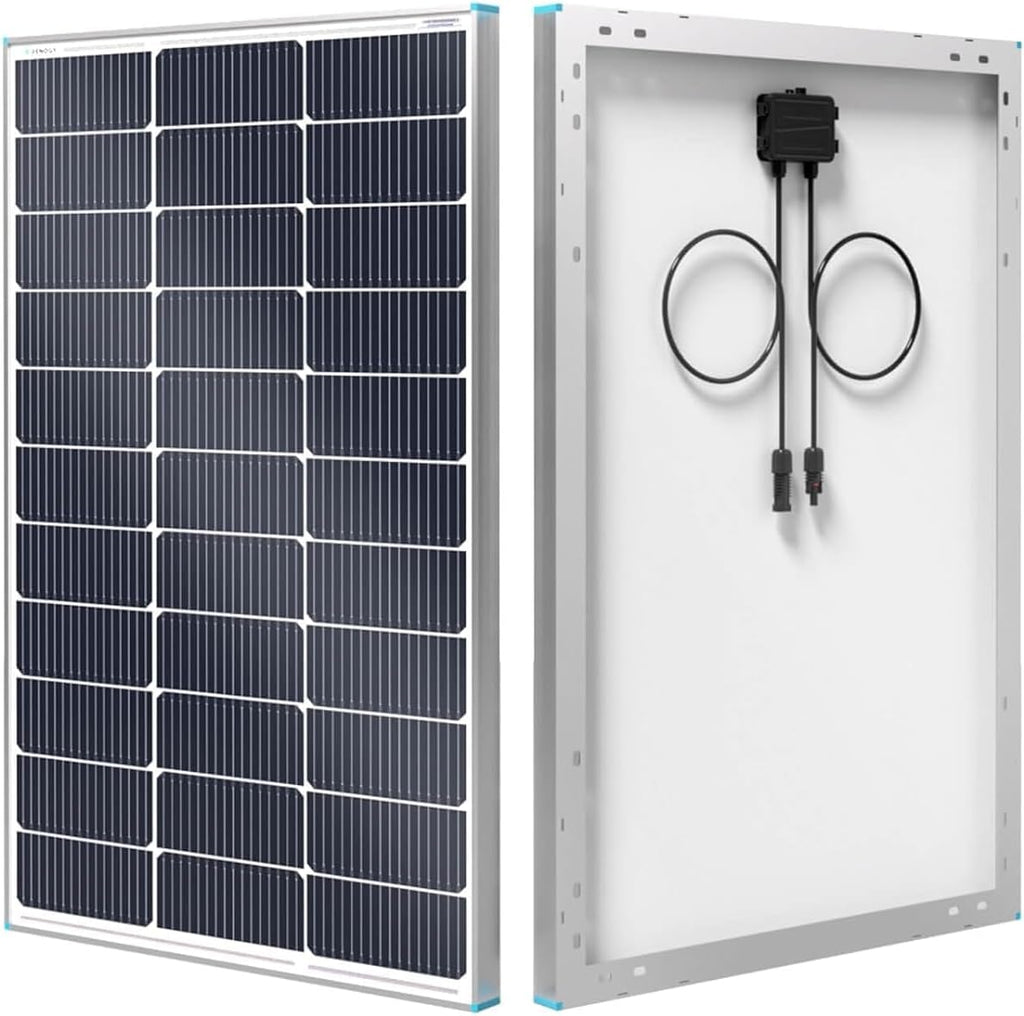

Designed for exceptional performance and durability, this solar panel combines premium A+ grade N-type cells with advanced 16BB technology to maximise energy output and reliability. The improved cell design reduces internal resistance, minimises hot spots and micro-cracks, and extends overall lifespan. With excellent low-light performance and high photoelectric conversion efficiency, it delivers consistent power generation in various conditions. Its low temperature coefficient helps minimise power loss in extreme heat, ensuring stable output even in hot climates. Built with an IP65-rated structure, it provides long-lasting protection against rain, snow, and harsh outdoor environments.
Features:
- Weather-Resistant Build: Low-iron tempered glass and corrosion-resistant aluminium frame provide reliable performance in rain, snow, and humidity.
- Reinforced Structure: Polyamide corner braces strengthen the frame for improved stability against wind and snow loads.
- Effortless Installation: Lightweight design with pre-drilled holes allows for quick and secure mounting on RVs, boats, and outdoor brackets.
Specifications:
Unfolded Dimensions: 2,358mm W x 745mm D x 20 mm H
Folded Dimensions: 588mm W x 725mm D x 80 mm H
Frame Material: Aluminium
Cell Material: N-Type Monocrystalline Silicon
Surface Material: Low-iron Tempered Glass
Corner Material: Polyamide
Colour: Black
Model Number: RSP100DC
Cell Type: N-Type
Busbar Technology: 16BB
Intelligent Chip: PCBA
Maximum Power (STC): 100W
Optimum Operating Voltage (Vmp): 19.97V
Maximum Series Fuse Rating: 15A
Optimum Operating Current (Imp): 5.01A
Open-Circuit Voltage (Voc): 22.79V
Short-Circuit Current (Isc): 5.31A
Maximum System Voltage: 600VDC
Module Efficiency: 20%
Cell Efficiency: 25%
Operating Temperature: -40°F~194°F / -40℃~90℃
Connector Type: MC4
IP Rating: IP65
Installation Required: Yes
Package Contents:
1 x Solar Panel
Package Specifications:
Package Dimensions(WxDxH): 89.7 x 61.9 x 5.9cm
Gross Weight: 6.8kg
Notes:
- Despite efforts for accuracy, there may be some reasonable error due to manual measurement.
- Actual product colours may vary due to monitor settings & lightings.
